Description

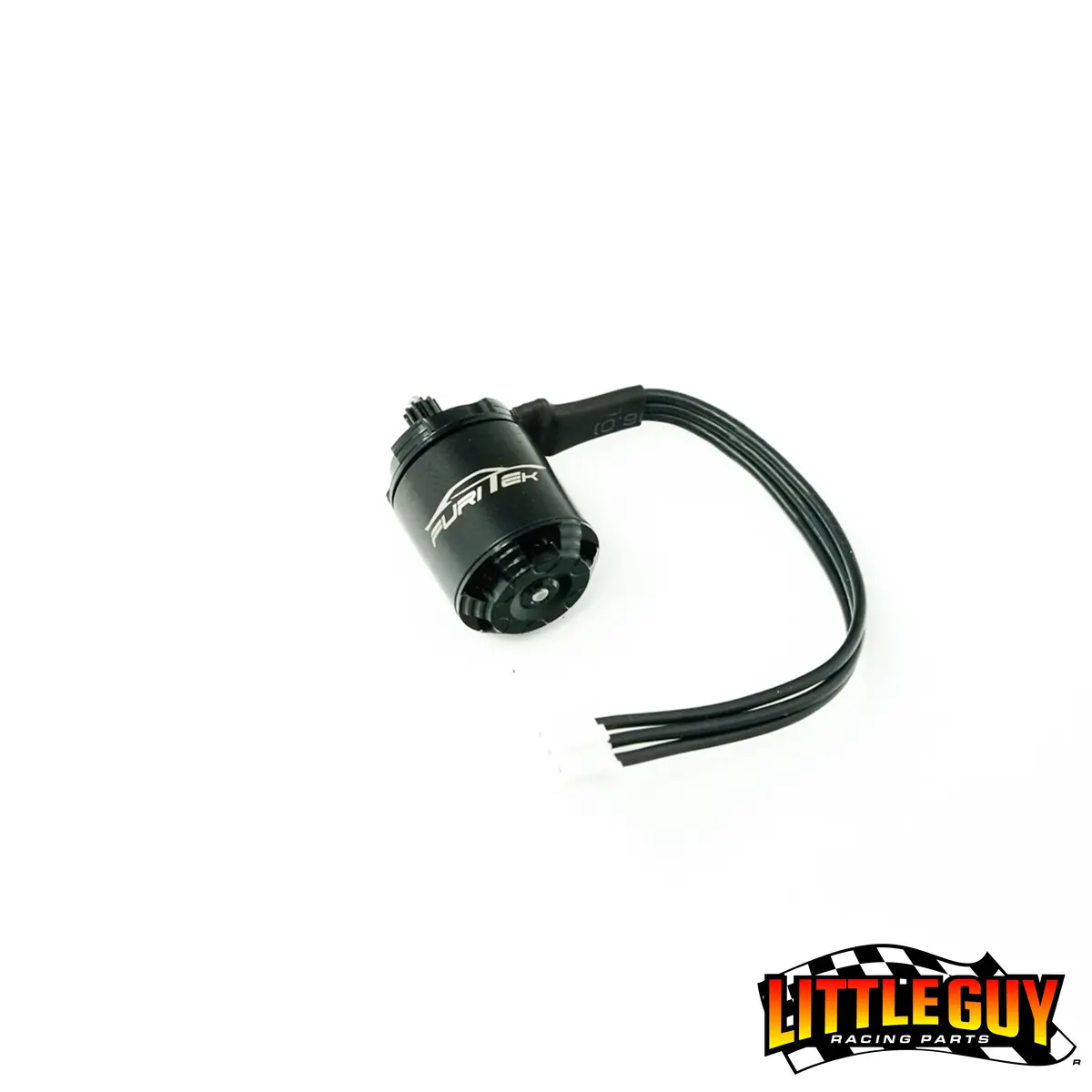

The LGRP® X Furitek Micro Komodo Brushless Motor is a groundbreaking collaboration between Little Guy Racing Parts and Furitek, a renowned name in electronics for RC crawlers. Designed specifically for the SCX24 platform, this motor is built to deliver everything you could ever want for crawling—massive low-end torque and exceptionally smooth power and torque curves.
Key Features:
- 12 Pole Hi-Torque Motor Design: Delivers unmatched power and performance.
- Super Thin (0.2 mm) Stator Laminations: Enhances efficiency and reduces heat build-up.
- Japanese NMB High RPM ABEC5 Bearings: Ensures smooth and reliable operation.
- Precision Balanced Rotor: Provides the best reliability and maximum RPM.
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can: Offers superior heat dissipation and durability.
- Precision Engineered for Maximum Energy Conversion: Optimizes performance for demanding RC crawling applications.
- High Purity and Higher Temperature Single Copper Windings: Ensures excellent efficiency and reliability.
- Excellent Heat Dissipation: Maximizes efficiency and prolongs motor life.
- Pre-installed 11T Tooth Pinion Gear: Ready for seamless installation and improved performance right out of the box.
Specifications:
- KV (RPM/Motor): 3450
- No-load Current @10V: 0.7A
- Watt: 120W
- Battery: 2-3S
- Resistance: 0.16 Ohms
- Max Current: 10A
- Slot/Pole: 12
- Motor Size (mm): 15.5×20.6
- Shaft (mm): 1.5×6
- Weight (g): 17.5
- Bolt pattern spread: 9mm
What’s Included:
- (1) Brushless Motor
- (3) M2 x 10mm Mounting Screws
- (1) .3 mod 11T Brass Pinion Gear (Pre-installed)
Please note: The LGRP® X Furitek Micro Komodo Brushless Motor is only compatible with motor mounts with a 9mm bolt spread. It is not compatible with the stock SCX24™ motor plate or stock ESC. We highly recommend pairing this motor with the Furitek Lizard Pro 30A/50A ESC and our MR24 Transmission for optimal performance.
This product does not contain and any batteries of any kind.
